- Polycarbonate base and cover
- Cover fitted to base with stainless steel screws in threaded brass inserts
- Gear tray fixed to diffuser for instant access to terminal block & fixing points for faster installation
- Supplied with standard (“Man running towards door”) legend pack.
- 20mm conduit entry
- Lithium (LiFePO4) battery cells (not suitable for use below 0oC)
- 150/170 lm on mains 133 lm on battery supply -
- 3 hours operation on battery power after mains failure
- 20m maximum viewing distance with standard legends
- 30m maximum viewing distance with drop-down attachment
- Can be installed as maintained or non-maintained. Wiring diagrams are supplied in the instruction leaflet.
- Quick Installation, Gear Tray is fixed on the diffuser, when installation, Do not need release gear tray
- Corridors
- Exits
- Escape routes
- Self testing Version is available

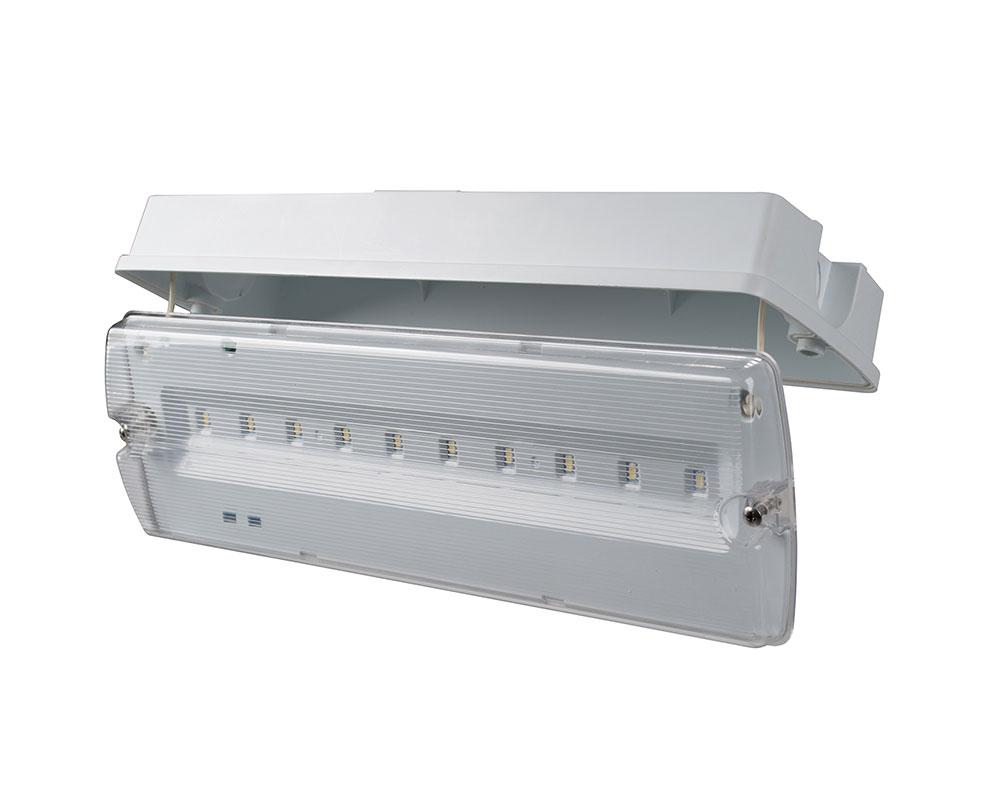

- DROP DOWN ATTACHMENT Polycarbonate drop down signage attachment available, c/w legends. Order as a separate item
- RECESSED MOUNTING KIT Semi-recessed mounting kit available. Cut-out 360 x 120mm. Order as a separate item. LEGENDS Spare legend packs available.
Technical datas:
Model | YGBH1C |
Input Voltage | 220-240V AC |
Power Consumption (W): | 5W |
Light output L100 (lm): | 170 |
CCT L100 (K): | 6500K |
Power factor(PF) | <0.5 |
Protection Class | Class II |
CRI L100: | >80 |
IK rating: | 8 |
IP rating: | IP65 |
Dimension (mm): | 352*110*65 |

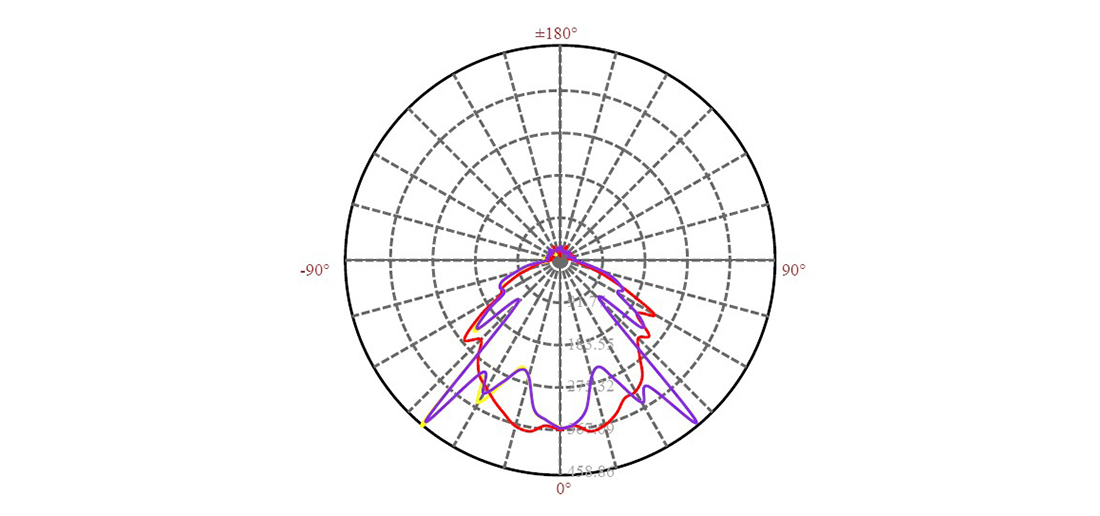

Light Distribution Curve:

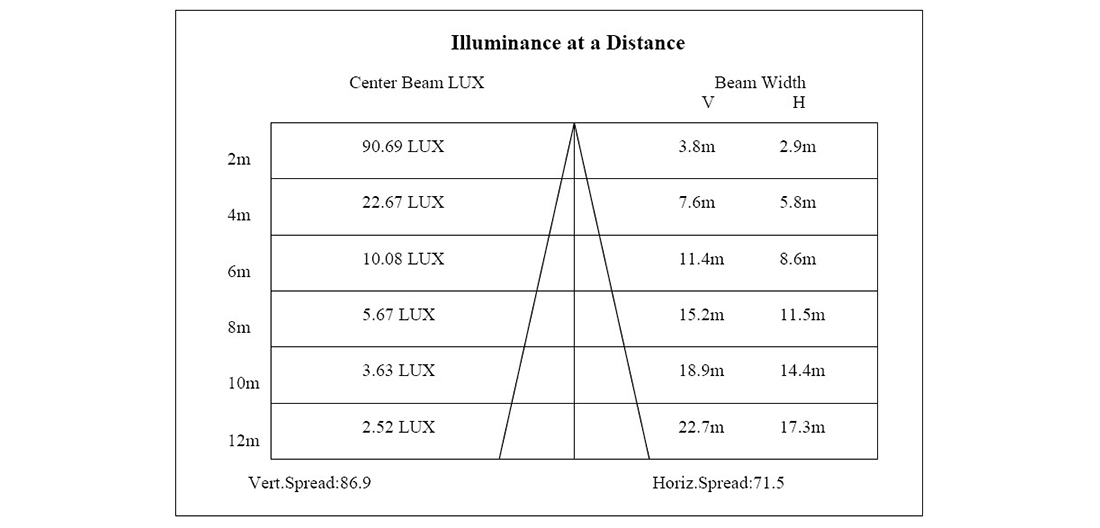

Lux Distance Curve:

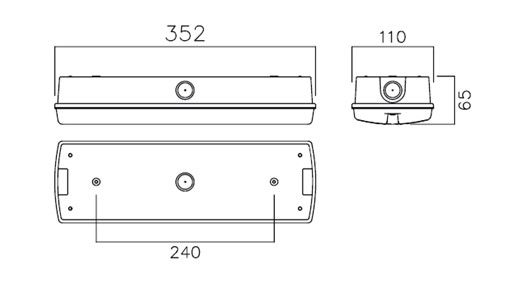

Size:

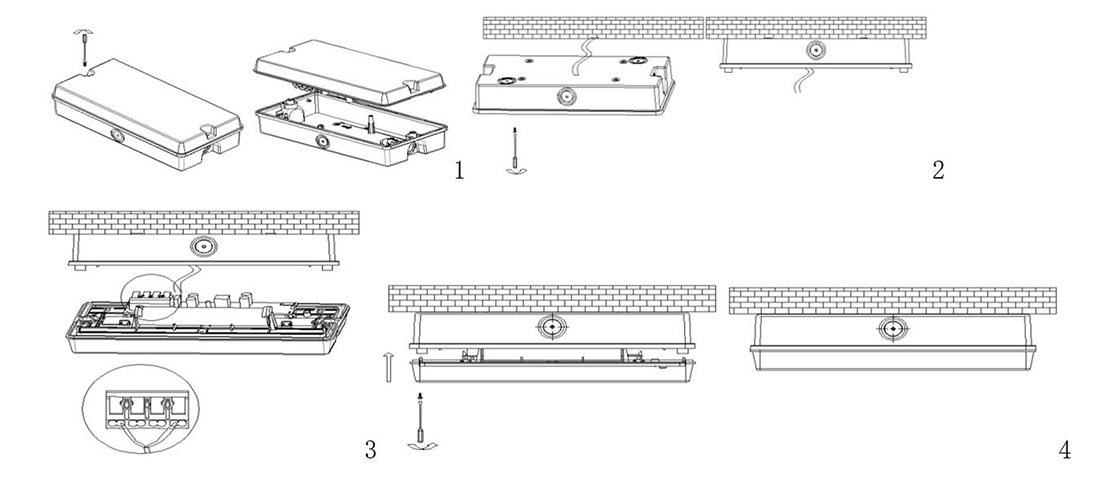

Installation:
