Aluminium body with powder coat finish
Opal polycarbonate diffuser design for good performance and light distribution

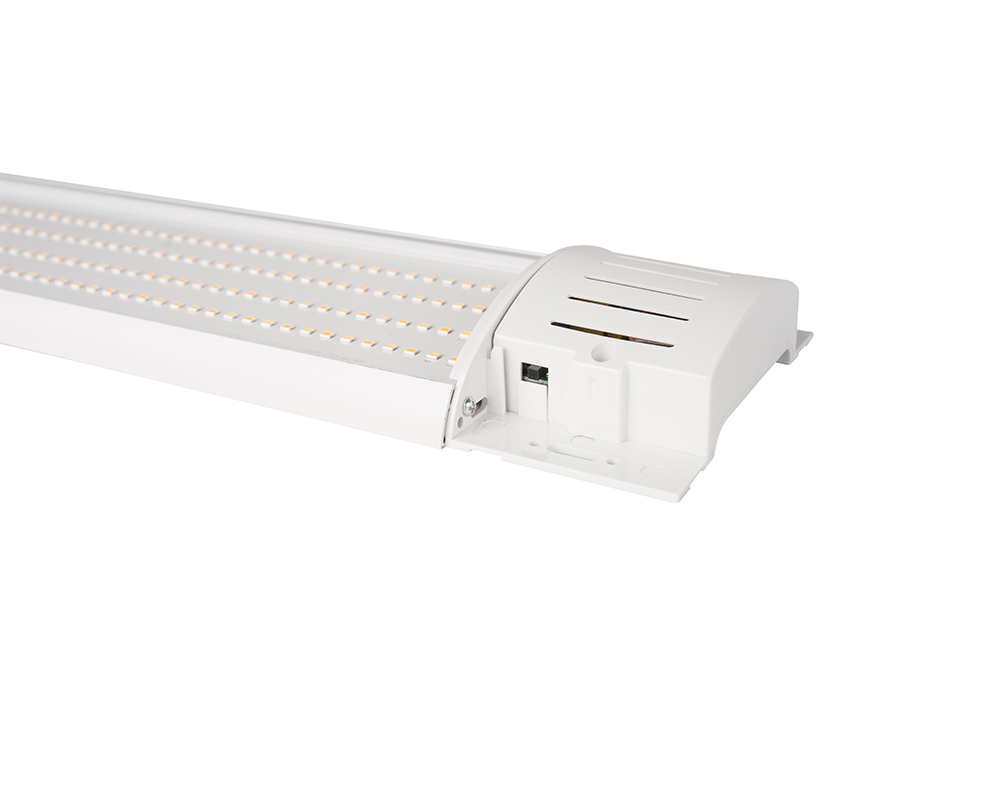

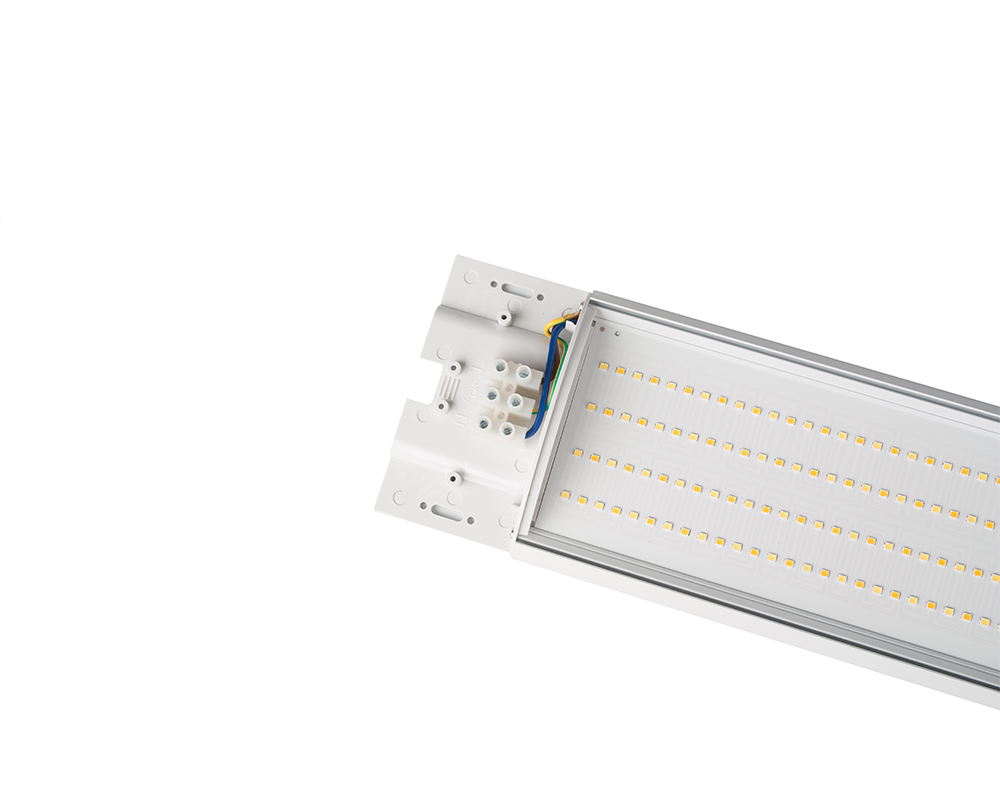

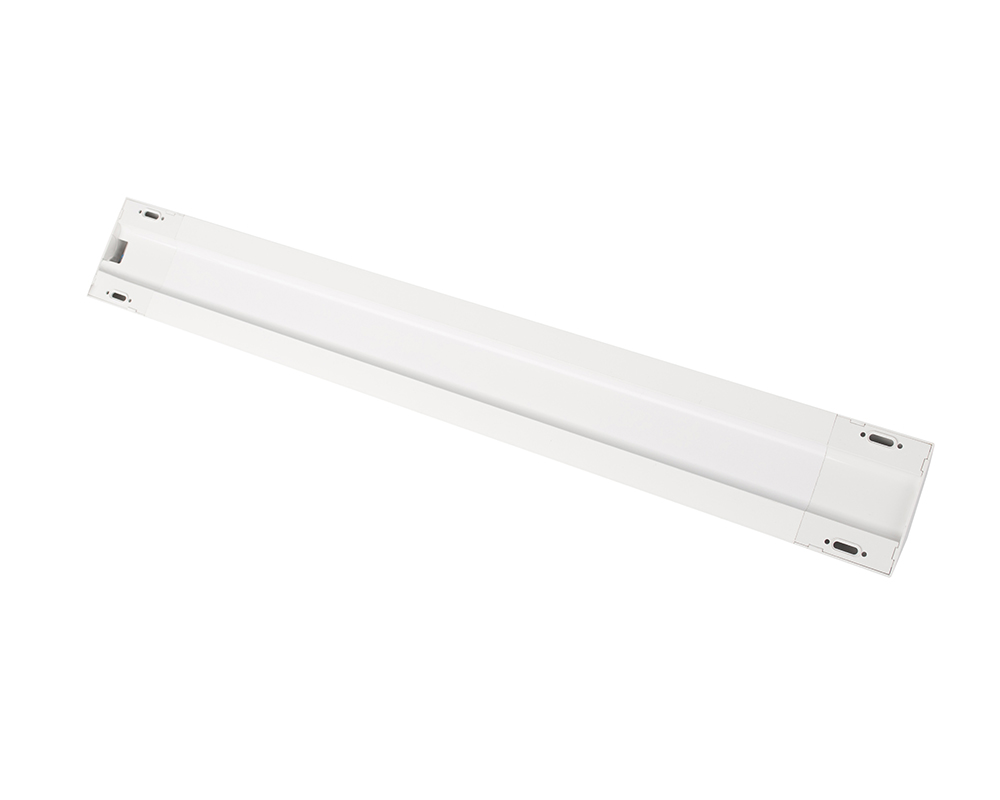

Extruded aluminium body with plastic end cap with a rear cable channel allowing easy wiring
High lumen efficiency: >115lm/W
3 CCT selectable, one product provides 3000K/4000K/5700K colour temperature options.
ENEC approved flicker free driver
Conventional LED profile battens for commercial service spaces
3CCT/2CCT is available
2.Technical datas
| Model | YGBT10N-20 | YGBT10N-35 | YGBT10N-40 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 20W | 35W | 40W |
| Light output L100 (lm): | 1800/1900/1850 | 3300/3500/3400 | 4000/4600/4400 |
| CCT L100 (K): | 3000K/4000K/5700K(3CCT SELECTABLE) | ||
| Power factor(PF) | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 |
| Efficacy (lm/W): | >110 | >110 | >110 |
| Ingress protection (IP): | IP20 | IP20 | IP20 |
| SIZE(mm)-L*W*H: | 597*80*35 | 1197*80*35 | 1485*80*35 |
| Model | YGBT10N-25 | YGBT10N-48 | YGBT10N-55 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 25W | 48W | 55W |
| Light output L100 (lm): | 2200/2600/2400 | 4400/5000/4800 | 5600/6200/6000 |
| CCT L100 (K): | 3000K/4000K/5700K(3CCT SELECTABLE) | ||
| Power factor(PF) | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 |
| Efficacy (lm/W): | >110 | >110 | >110 |
| Ingress protection (IP): | IP20 | IP20 | IP20 |
| SIZE(mm)-L*W*H: | 613*120*35 | 1213*120*35 | 1485*120*35 |

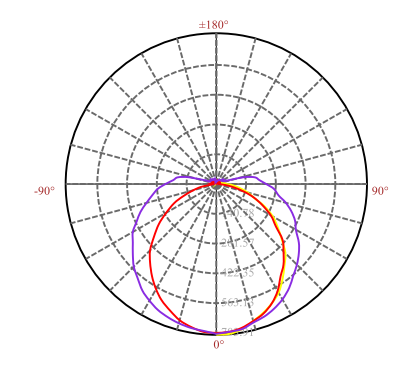

3.Light Distribution Curve

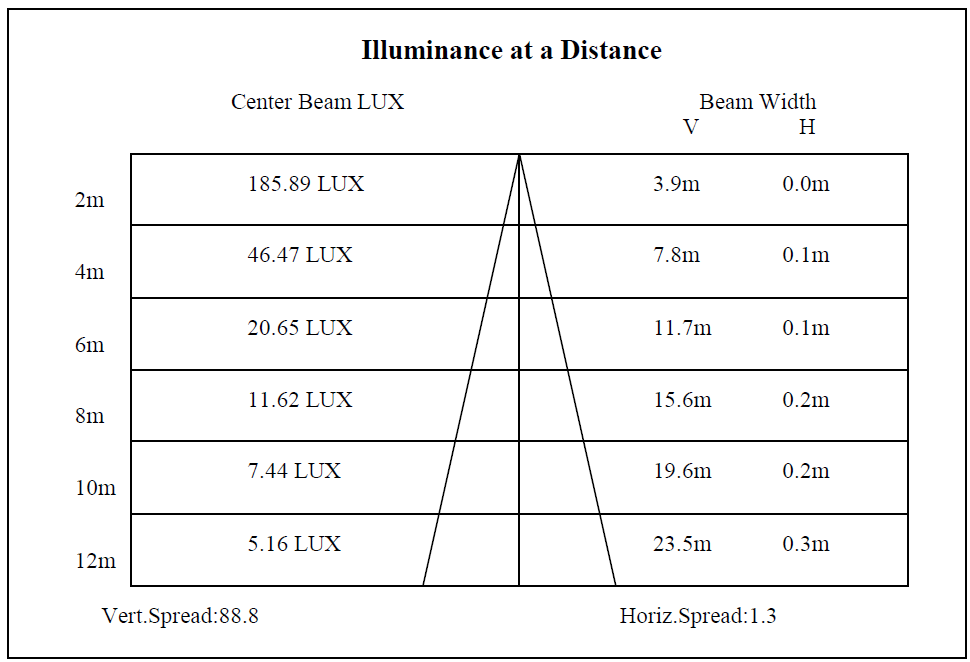

4.Lux Distance Curve-

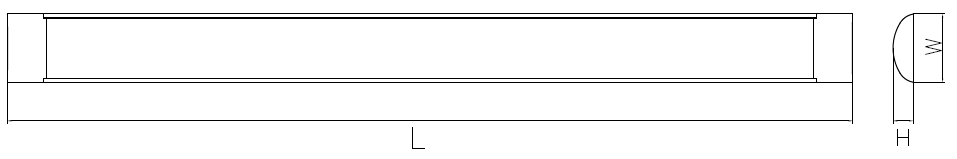

5.Size ----

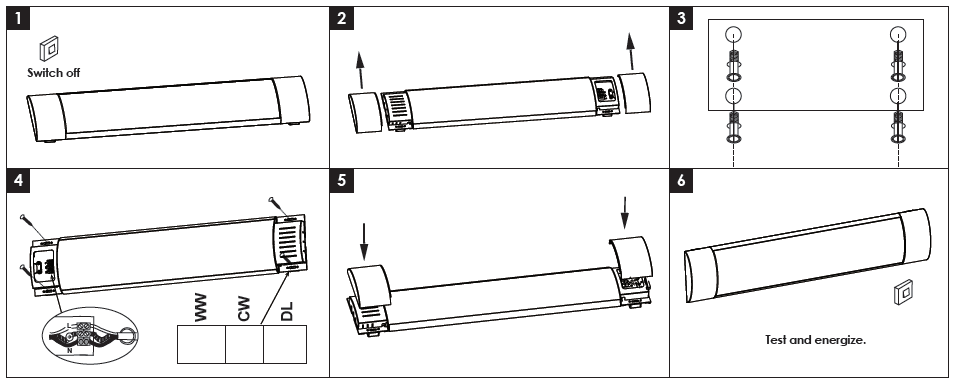

6.Installation
