- Moulded polycarbonate body construction
- Acrylic lens
-Lifepo4 battery pack
- 1.5W/4.5W With Oval/ Wide lens , for different light distributions:
• Wide, giving a circular distribution • Oval, giving an oval light distribution
- Non-maintained operation
- Momentary manual test button fitted
- Self-test version, compliant with BS5266 available.
-IP65
-3 year warranty
- Corridors - Escape routes
- Self testing Version is available
Technical datas:
| Codes | YGDL3E-AS1.5 | YGDL3E-AT1.5 | YGDL3E-AS4.0 | YGDL3E-AT4.0 |
| Input Voltage | 220-240V | 220-240V | 220-240V | 220-240V |
| Power Consumption (W): | 1.5W | 1.5W | 4.5W | 4.5W |
| PF | <0.5 | <0.5 | <0.5 | <0.5 |
| LED | SMD 5050 | SMD 5050 | SMD 5050 | SMD 5050 |
| Light output L100 (lm): | EMG=180Lm+/-10% (Wide/Open Lens) /150Lm+/-10%(Oval /Corridor Lens) | EMG= 500Lm+/-10%(Wide/Open Lens)/425Lm+/-10%(Oval /Corridor Lens), | ||
| CCT L100 (K): | 5700K+/-355k | 5700K+/-355k | 5700K+/-355k | 5700K+/-355k |
| CRI L100: | >70 | >70 | >70 | >70 |
| Charge time: | 24HRS | 24HRS | 24HRS | 24HRS |
| Duration: | >3HRS | >3HRS | >3HRS | >3HRS |
| Battery Sepc.: | LIFEPO4 3.2V 1.5AH | LIFEPO4 3.2V 4.0AH | ||
| L×W×H (mm): | 106*59mm(recessed),106*80mm(surface)—CUT OUT Ø92/ Ø140mm | |||

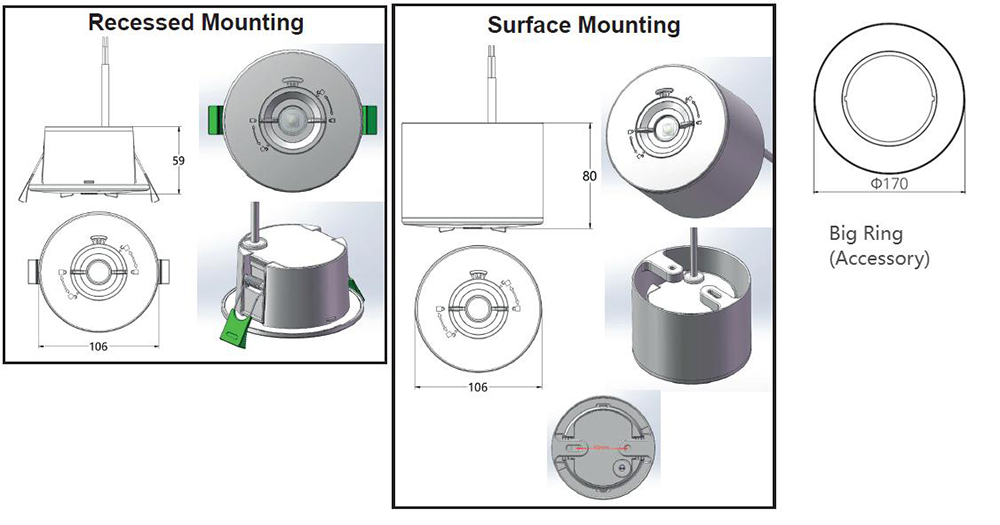

Measurement:

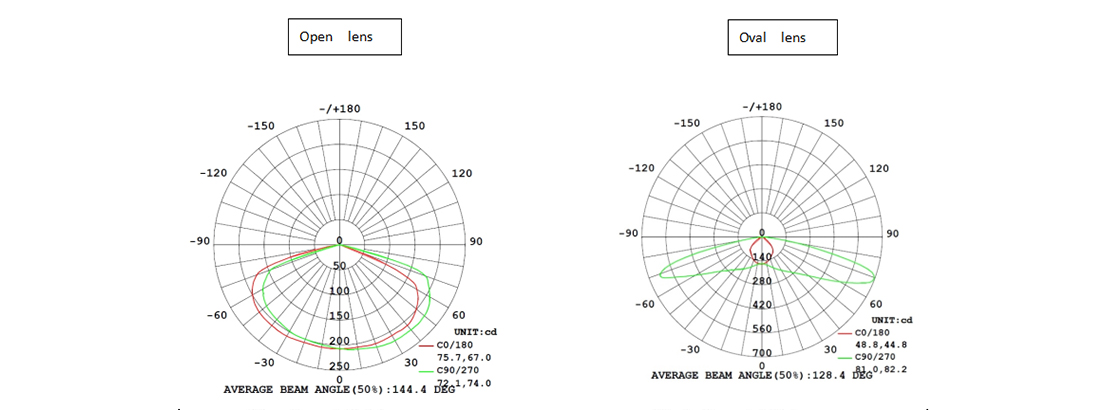

Photometric Distribution:
