- Suitable for high level mounting applications
- Ideal for use in high risk task areas, warehousing and manufacturing
- 8W/12W- 1000/1500 Lm High Lumen output (Selectable)
- Manual & Self testing combination
- Polycarbonate structure
- Non Maintained
- IP65,IK08
- 20MM Conduit Entry from four directions and rear. 2pcs of cable entry will be used for toolless block,avoid drilling and save labor cost
1.5 Years Warranty
- Corridors - Exits - Escape routes
- Manual & Self testing combination
Technical datas:
| Codes | YGBH30EM-6.6AZ |
| Input Voltage | AC220-240V 50/60Hz |
| Emergency Power (W): | 8W/ 12W Selectable |
| PF | >0.4 |
| Ripple current | <10% |
| LED | 0.5W 2835 8S9P=72LED |
| Emergency Light output L100 (lm): | 1000/1500LM Selectable |
| Battery | LifePo4 6.4V 6.6Ah , Duration> 3hrs |
| CCT L100 (K): | 6500K |
| CRI L100: | >80 |
| L×W×H (mm): | 320×160×80 |

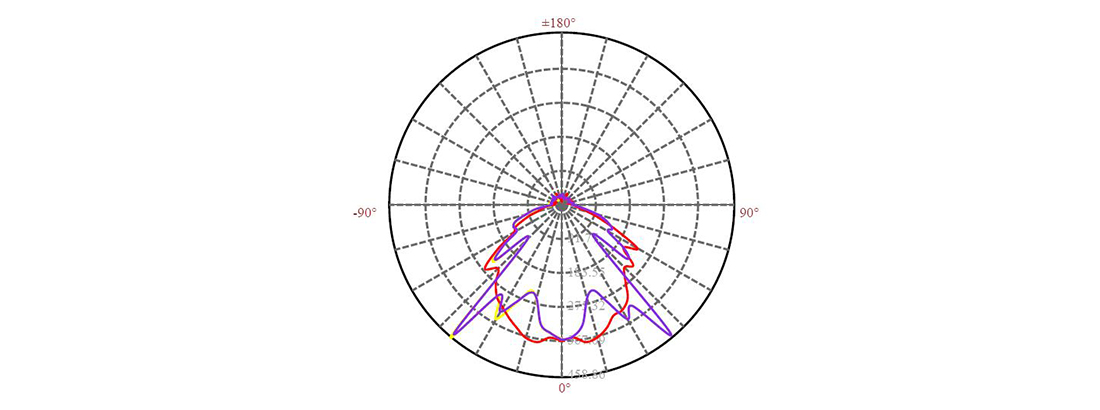

Light Distribution Curve:

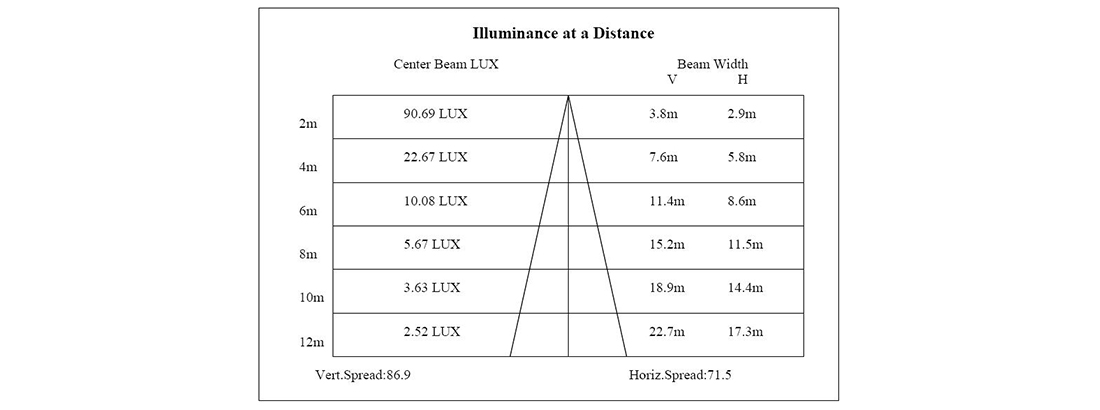

Lux Distance Curve:

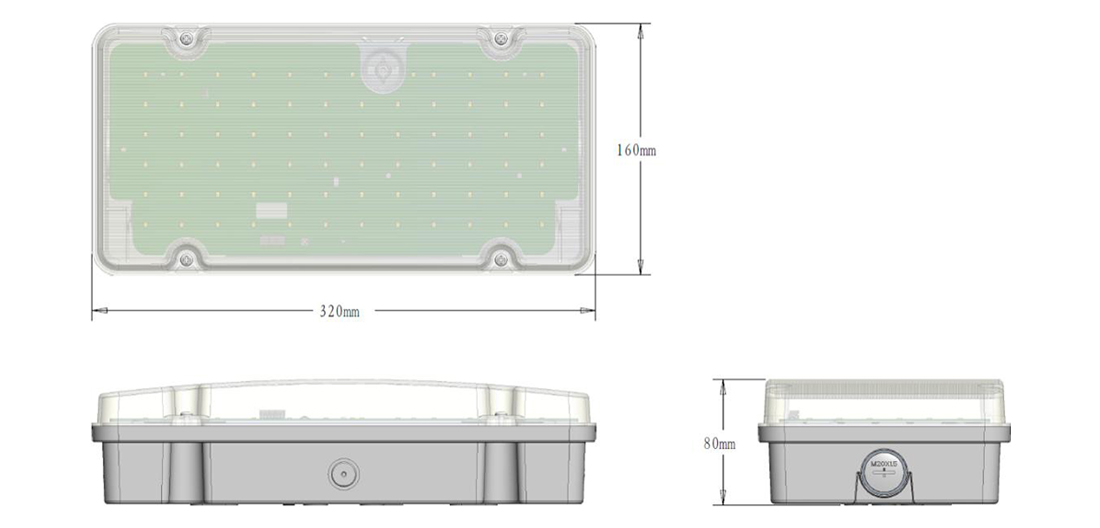

Size:
