- Moulded polycarbonate body construction
- Acrylic lens
– Lifepo4 battery pack (not suitable for use below 0℃)
- 1.5W/3W Oval/ Wide -150/170LM---350/420 lumens
- Non-maintained operation
- Choice of two lenses for different light distributions: • Wide, giving a circular distribution • Oval, giving an oval light distribution.
- Momentary manual test button fitted
- Self-test version, compliant with BS5266 available.
- Corridors - Escape routes
--Self testing Version is available
Technical datas:
| Model | YGDL3F-R-AT1.5 | YGDL3F-R-AT3.6 |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 1.5W | 3W |
| Light output L100 (lm): | 150Lm (Oval/ Corridor Lens) /170Lm(Wide/ Open Lens) | 350Lm (Oval/ Corridor Lens) /420Lm(Wide/ Open Lens) |
| CCT L100 (K): | 6000k | |
| Power factor(PF) | <0.5 | <0.5 |
| Protection Class | Class II | Class II |
| CRI L100: | >70 | >70 |
| IP rating: | IP40 | IP40 |
| Dimension (mm): | Φ150×48 | Φ150×48 |

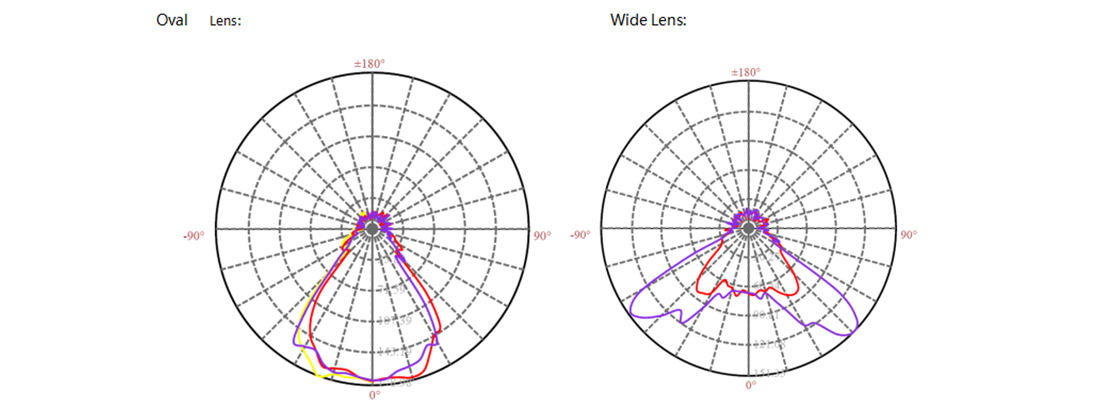

Light Distribution Curve:
