- 130/170 lumens(1.5W)
- Non-maintained operation
- Momentary manual test button fitted
- Self-test version, compliant with BS5266 available
- Corridors – Exits
- Self testing Version is available
Technical datas:
| Model | YGDL3G-AS1.5 | YGDL3G-AZ1.5 |
| Non-Maintained | Non-Maintained | |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 1.5W | 1.5W |
| Light output L100 (lm): | 130 | 170 |
| CCT L100 (K): | ||
| Power factor(PF) | <0.5 | <0.5 |
| Protection Class | Class II | Class II |
| CRI L100: | >70 | >70 |
| IP rating: | IP20 | IP20 |
| Dimension (mm): | Height/Depth:22mm, Diameter:42mm, Cut-out:34-34.6mm | |

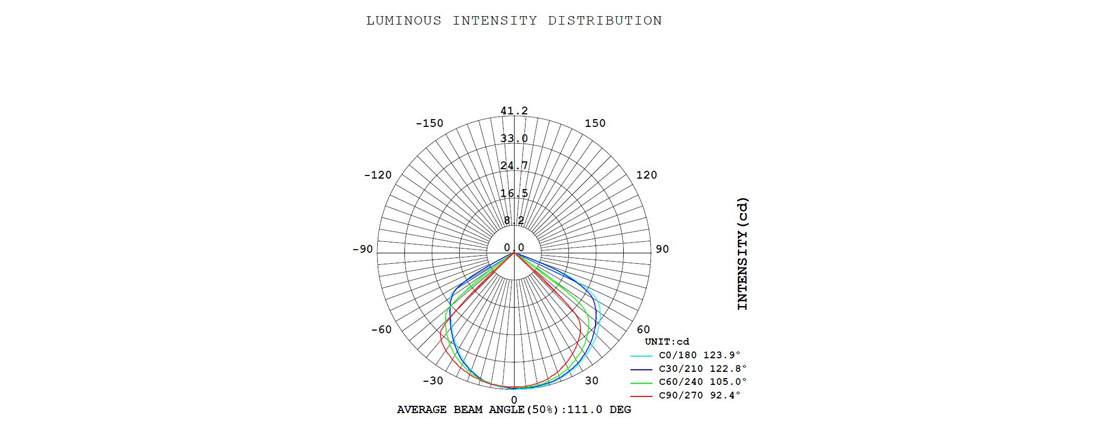

Light Distribution Curve:
