- Moulded polycarbonate body construction
- Acrylic lens
- Lifepo4 battery pack (not suitable for use below 0℃)
- 2W/3W Oval/ Wide -280/320 lumens
- Non-maintained operation
- Choice of two lenses for different light distributions: • Wide, giving a circular distribution • Oval, giving an oval light distribution.
- Momentary manual test button fitted
- Self-test version, compliant with BS5266 available.
- Corridors
- Escape routes
-Self testing Version is available
Technical datas:
| Model | YGDL3B-1 | YGDL3B-1M | YGDL3B-2 | YGDL3B-2M |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 2W | 2W | 3W | 3W |
| Light output L100 (lm): | 280 | 280 | 320 | 320 |
| CCT L100 (K): | 5500K | 5500K | ||
| Power factor(PF) | <0.5 | <0.5 | <0.5 | <0.5 |
| Protection Class | Class II | Class II | Class II | Class II |
| CRI L100: | >70 | >70 | >70 | >70 |
| IP rating: | IP40 | IP40 | IP40 | IP40 |
| Dimension (mm): | Φ150×44 | Φ150×44 | Φ150×44 | Φ150×44 |

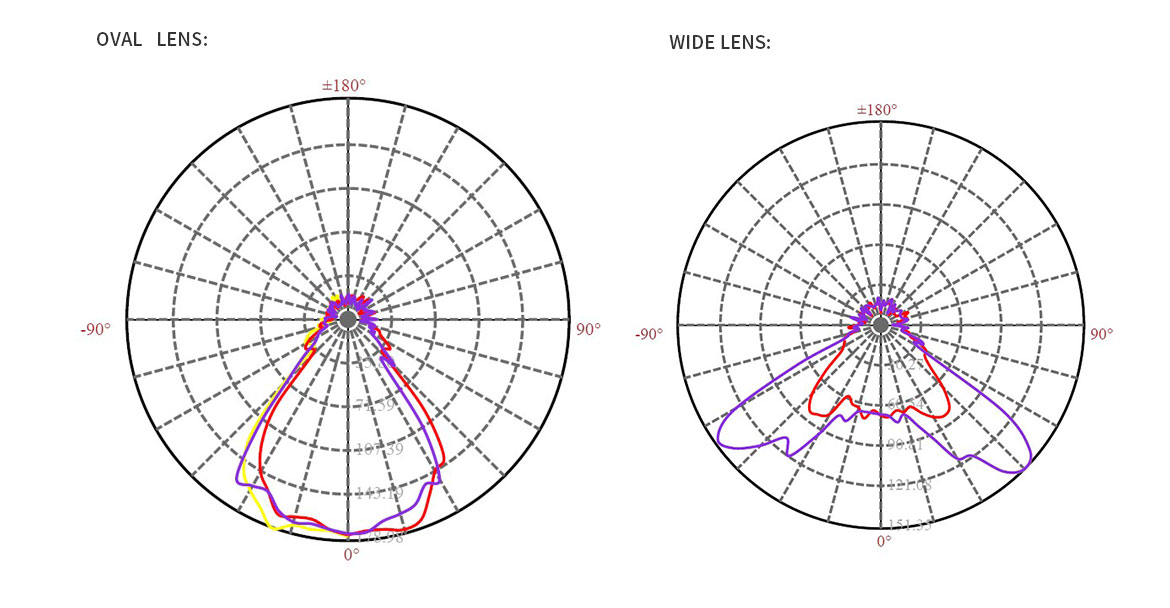

Light Distribution Curve:

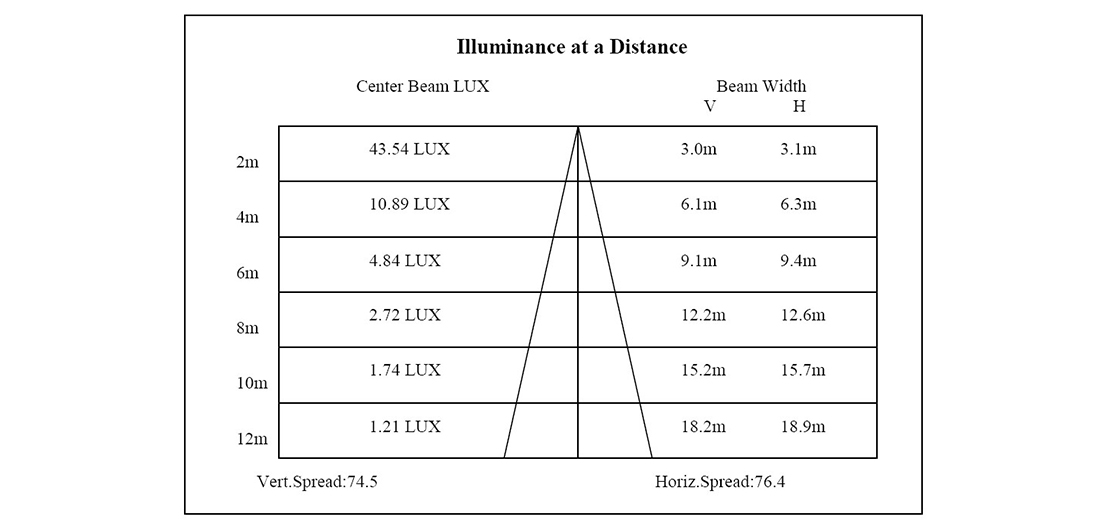

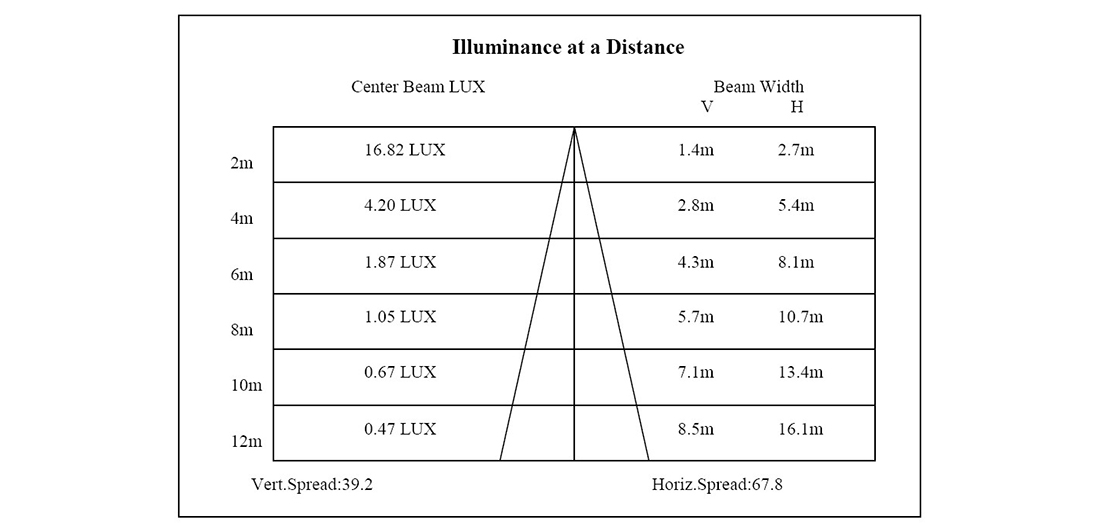

Lux Distance Curve:
Oval lens:
Wide lens:

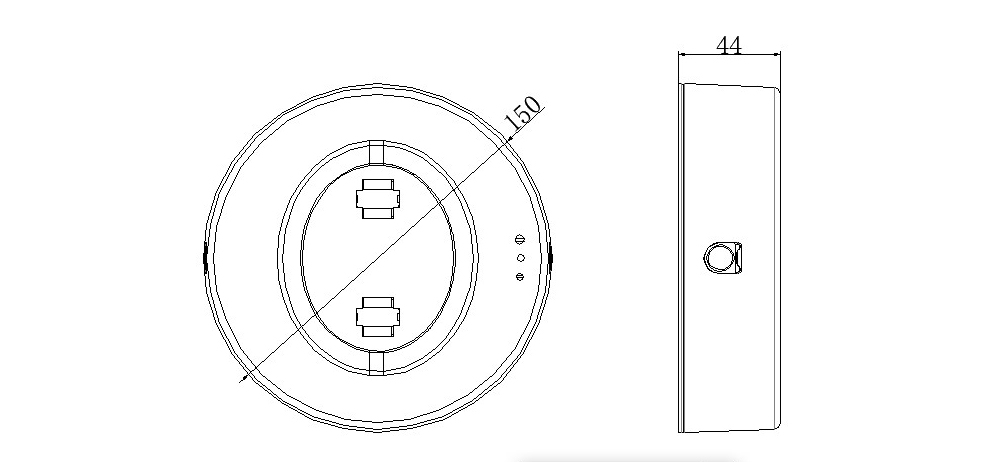

Size:

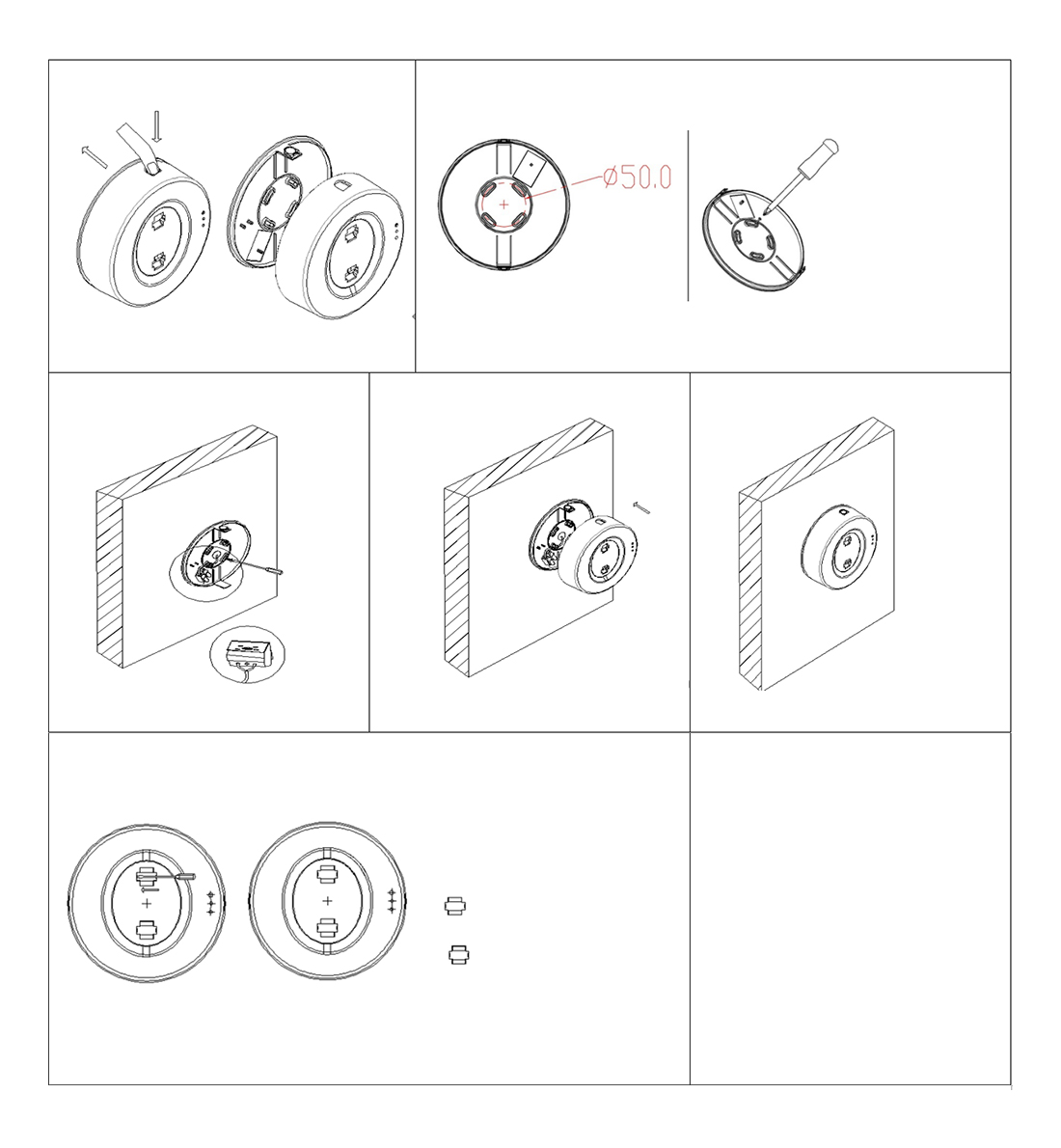

Installation:
