- Polycarbonate base and cover
–Short-circuit-proof battery connection
-Ambient Temperature: 0℃-55℃
-Open-circuit-proof
-Automatic shutdown of output if LED load is out of range
-Constant power output, output current self-adjustable
-Compatible with all dimmable and non-dimmable constant current LED driver
- Suitable for Batten lights/Waterproof lights/Panel lights.
-Plug-in M3 emergency conversion pack with Lithium Iron Phosphate (LiFePO4) battery.
This is range of LED Emergency Modules.Each variant has controlled current SELV compliant outputs,built-in adaptability that allows for optimum output current based on the forward voltage of the specific light engine for a more precise match to the controlled LED scheme. 3 hrs Emergency Duration.
-Self testing Version is available
Technical datas:
| Model | YGEP4C |
| Input Voltage | 220-240V AC |
| Output Voltage | 20-45Vdc (60-110mA) |
| Power Consumption (W): | 3W |
| Battery | Li-ion 7.4V*2.2Ah |
| Protection Class | Class II |
| CRI L100: | >70 |
| IP rating: | IP40 |
| Dimension (mm): | 284*52*28 |

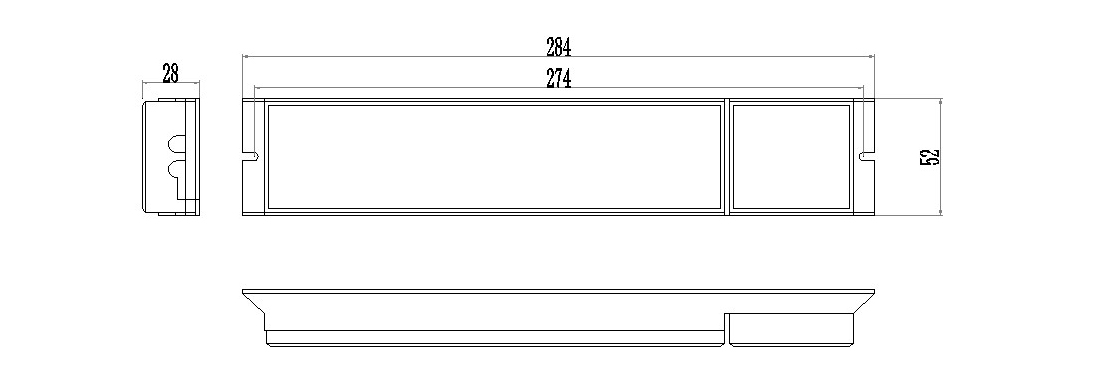

Size:

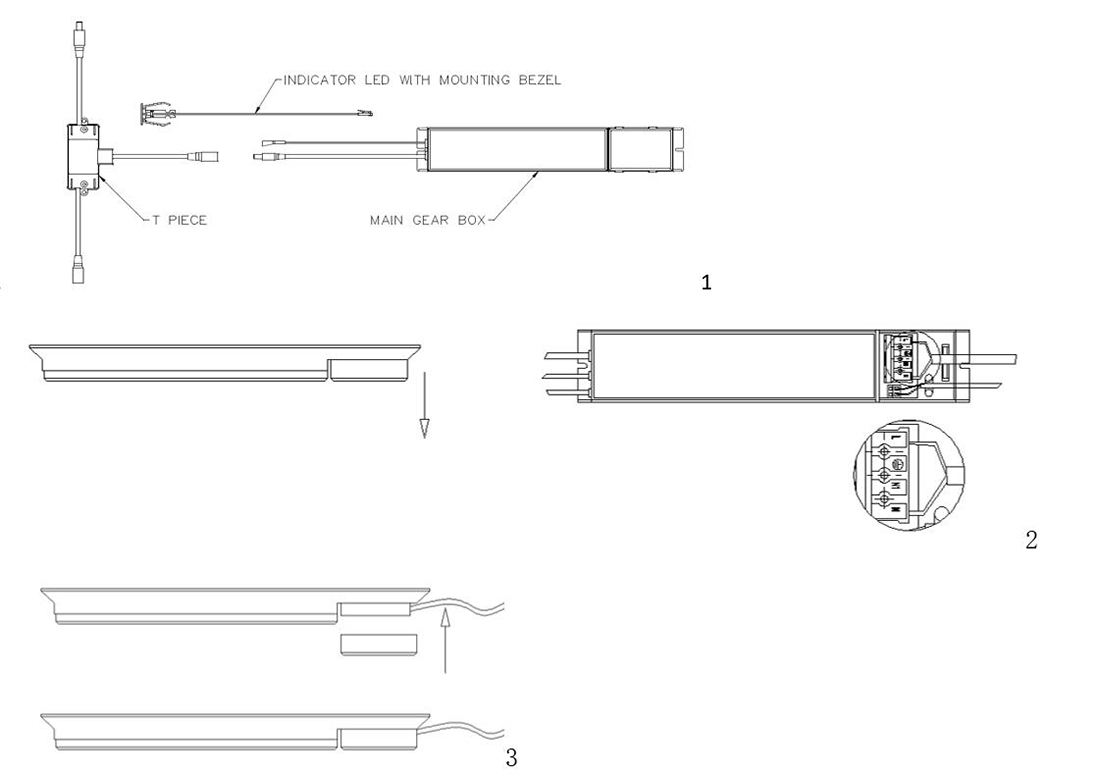

Installation:
