- 3 hours operation on battery power after mains power failure
- Can be wired up for either Maintained or Non-Maintained operation
- Charge indicator lamp fitted
- 30m maximum viewing distance
- Self-test version, compliant with BS5266 available.
- Injection moulded white pc body

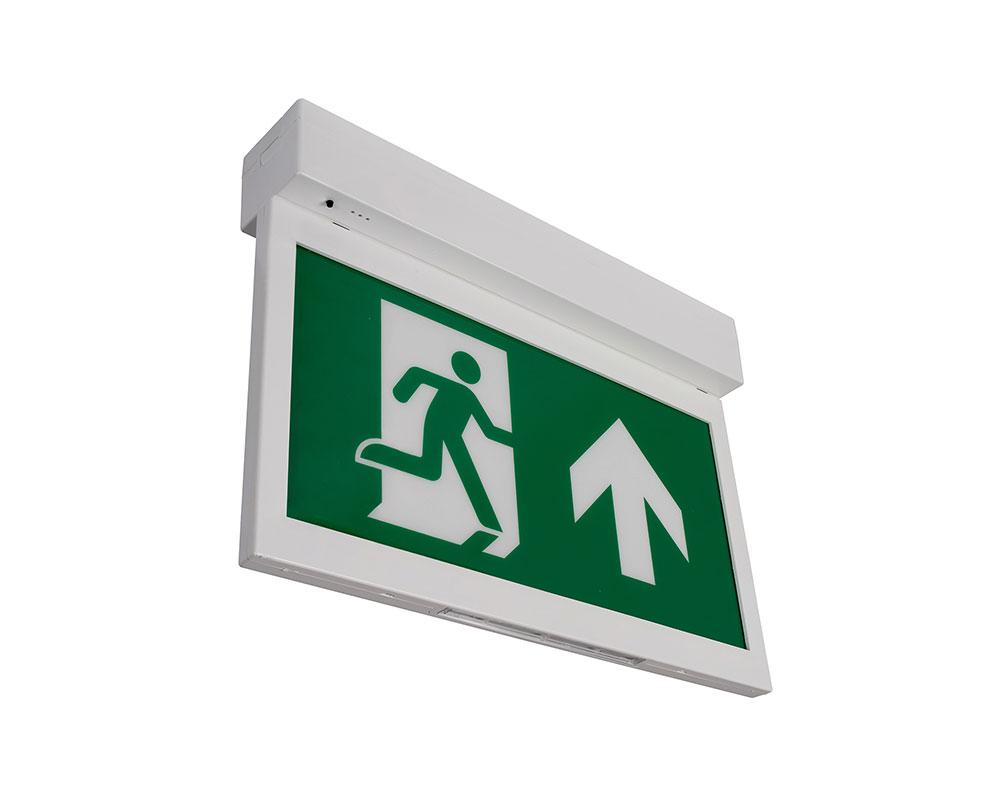

- Supplied complete with arrow down running man
- NiCd battery or LIfePo4 Battery
- Corridors
- Exits
- Escape routes
- Self testing Version is available
- LEGENDS Alternative legends available.
- Optional fixing attachments to allow: • Recessed fixing • Wire Suspension • Side wall mounting
Technical datas:
| Model | YGBH1C |
| Input Voltage | 220-240V AC |
| Power Consumption (W): | 5W |
| Light output L100 (lm): | 170 |
| CCT L100 (K): | 6500K |
| Power factor(PF) | <0.5 |
| Protection Class | Class II |
| CRI L100: | >80 |
| IK rating: | 8 |
| IP rating: | IP65 |
| Dimension (mm): | 352*110*65 |

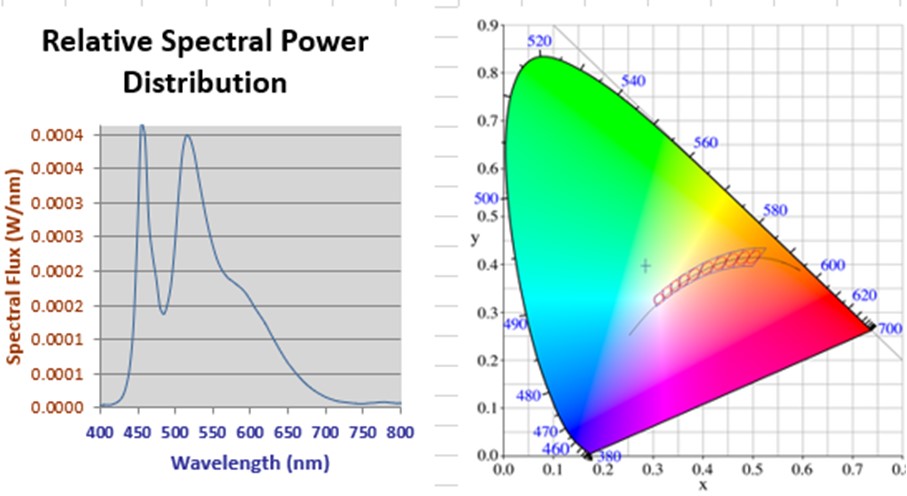

Light Distribution Curve:

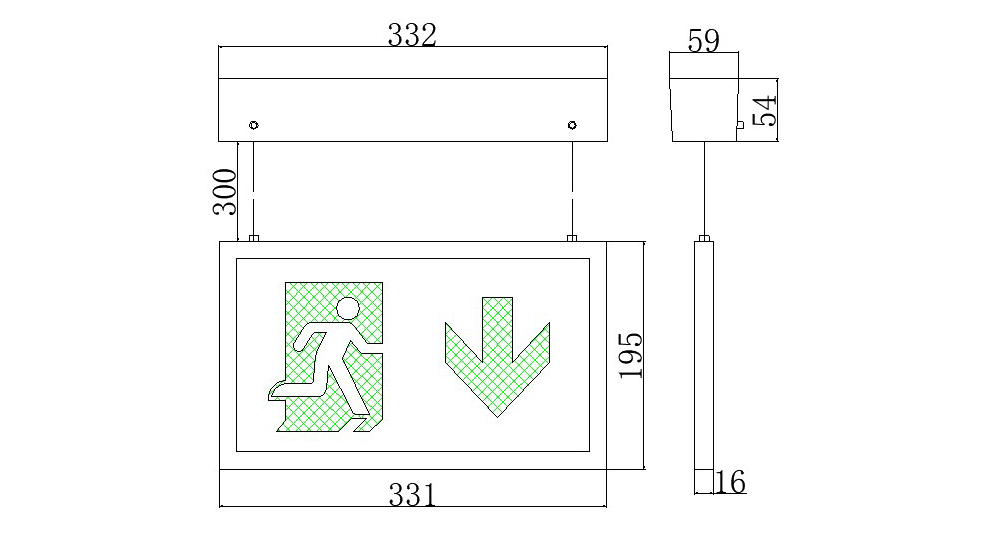

Size:

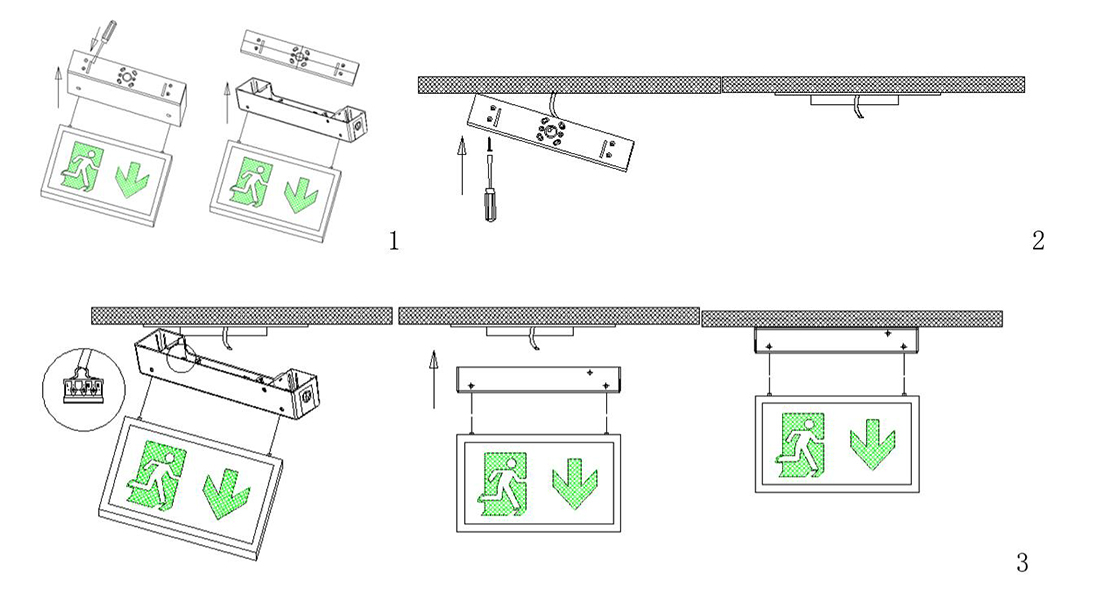

Installation:
