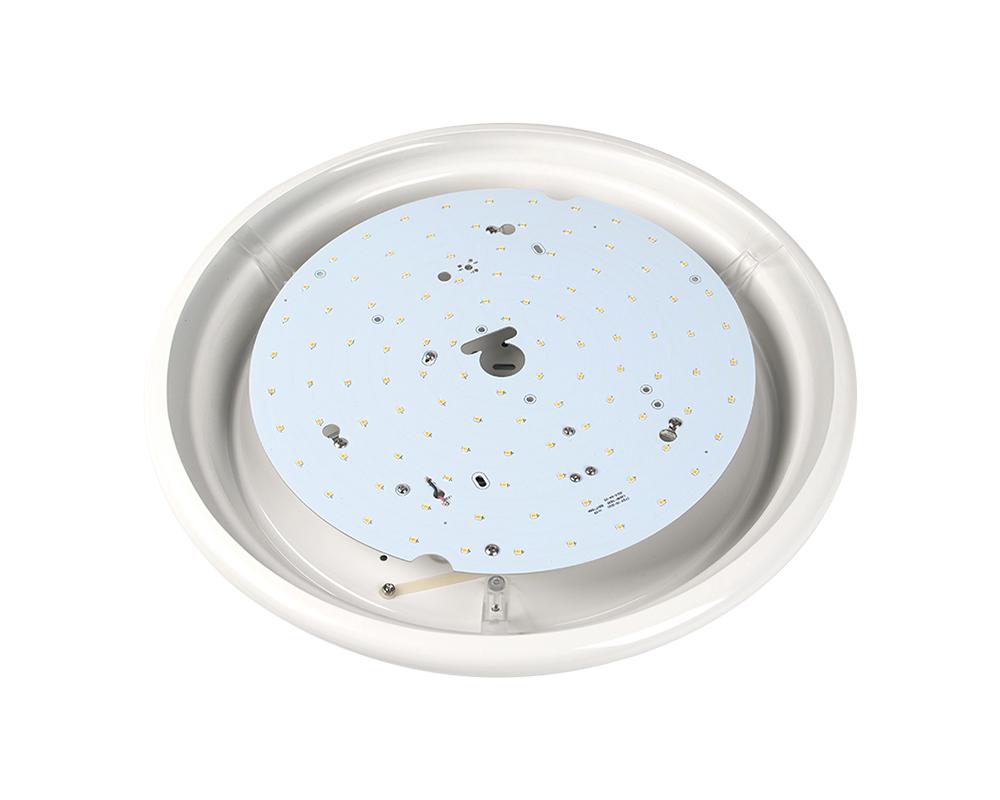

Pressed steel base in white or chrome finish
The high light-output is specially designed to deliver cost effective lighting designs compliant with BS12464
Piano key terminal block for easy installation & allows loop in / loop out wiring
3CCT selectable with internal DIP switch allows the installer to choose 3000K/4000K/5000K
ENEC approved LED driver
LED lifespan L70 50,000 hours
For interior use in corridors, stairs, and changing rooms
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBH8F |
| Input Voltage | 220-240V AC |
| Power Consumption (W): | 22W |
| Light output L100 (lm): | 1850±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) |
| Power factor(PF) | >0.9 |
| Protection Class | Class I |
| CRI L100: | >80 |
| Efficacy (lm/W): | >90 |
| Operating Temp | -10°C to 25°C |
| IP rating: | IP20 |
| Dimension (mm): | ɸ431*108 |

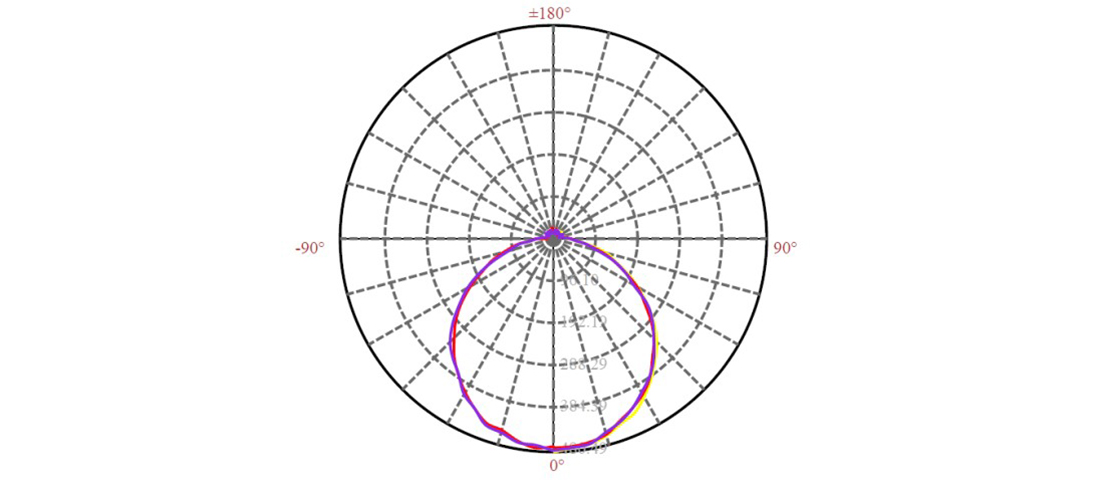

Light Distribution Curve:

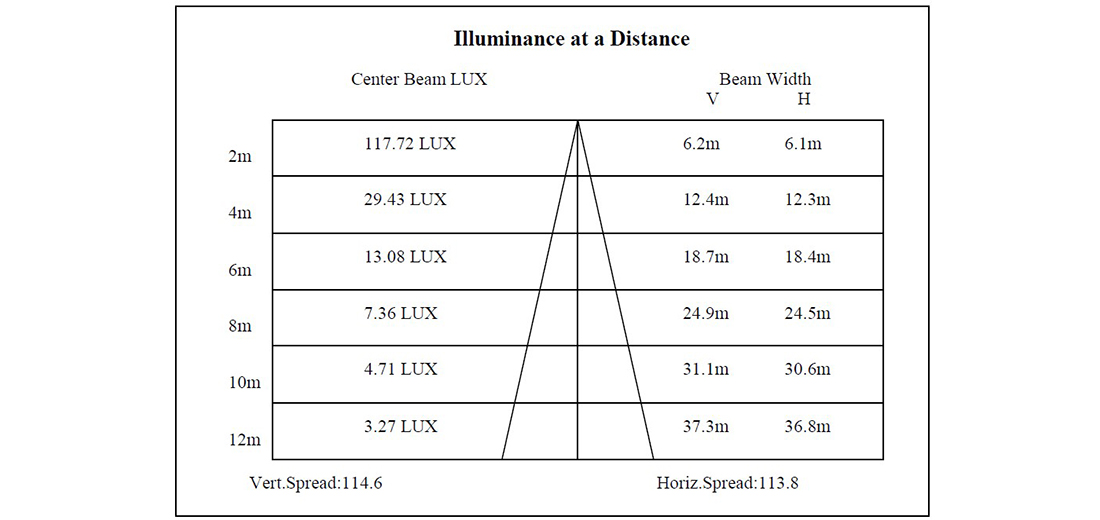

Lux Distance Curve:

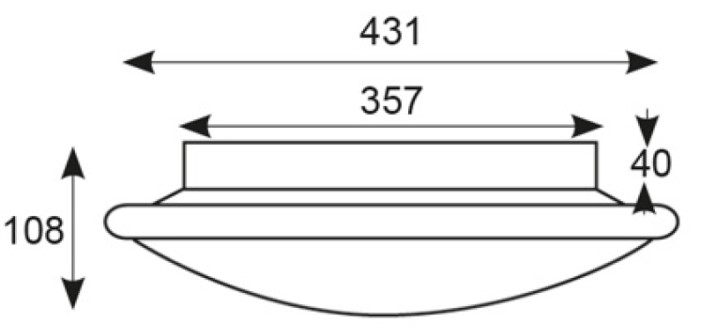

Size:

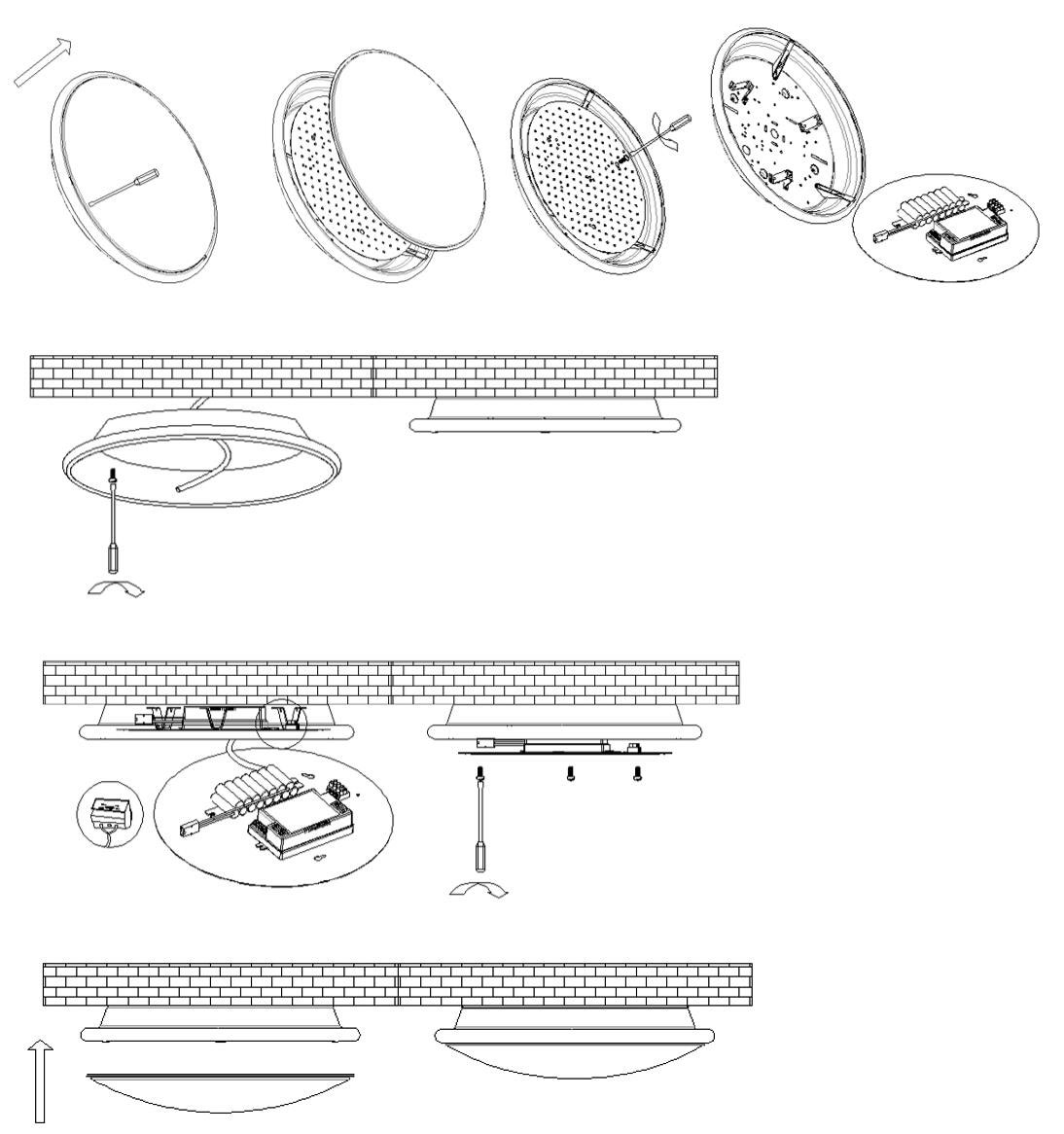

Installation:
