Die-cast aluminuium base and bezel with UV stable paint finish
Polycarbonate opal diffuser.

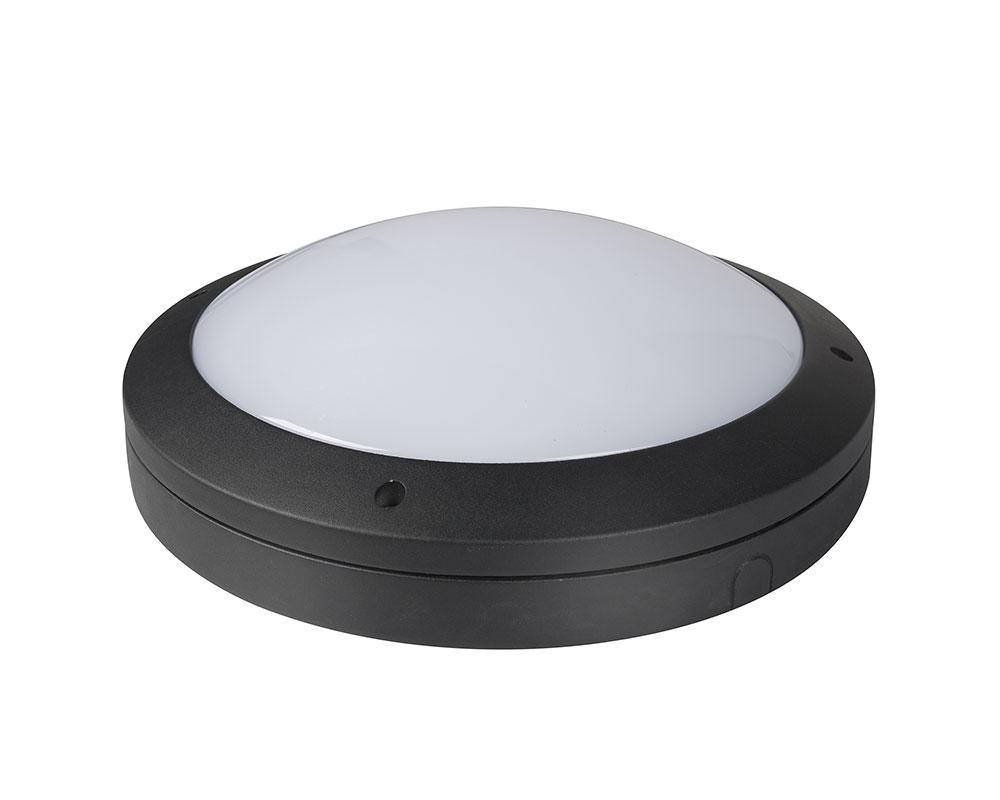

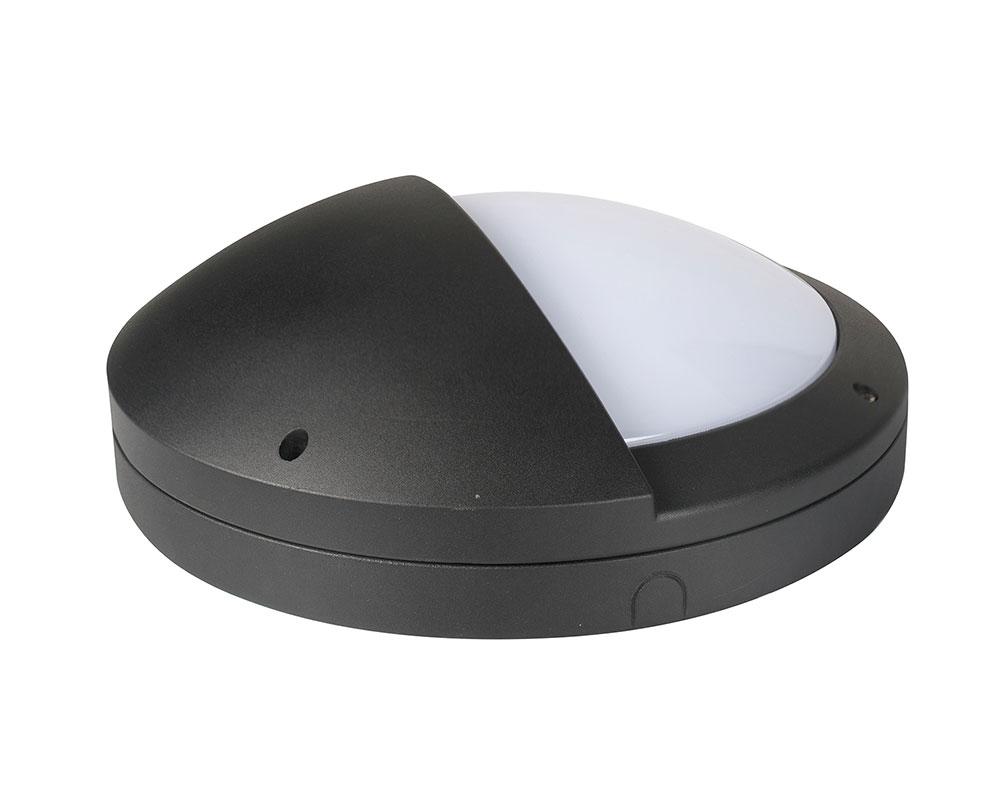

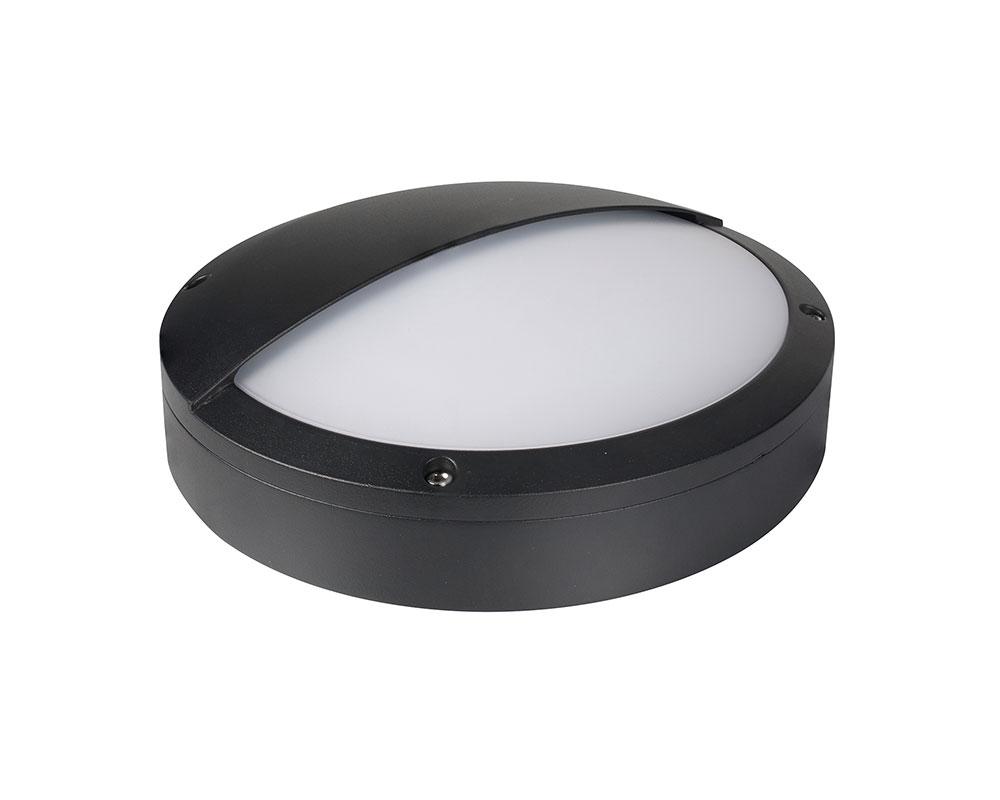

Plain and eyelid trim in white or black as option.
Piano key terminal block for easy installation & allows loop in / out wiring
Unique opal diffuser allows 90% light transmission from LED source for high efficacy of output.
LED lifespan L70 50,000 hours
Exterior walkways, stairs and building perimeters.
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBH8H | |||
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 17W | 17W | 22W | 22W |
| Light output L100 (lm): | 1500±7％ | 1400±7％ | 2000±7％ | 1800±7％ |
| Trim Stype | Plain | Eyelid | Plain | Eyelid |
| CCT L100 (K): | 3000K/4000K/5000K | |||
| Power factor(PF) | >0.9 | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | >85 | >80 | >85 | >80 |
| Operating Temp | -10°C to 25°C | -10°C to 25°C | -10°C to 25°C | -10°C to 25°C |
| IP rating: | IP54 | IP54 | IP54 | IP54 |
| IK rating: | IK10 | IK10 | IK10 | IK10 |
| Dimension (mm): | ɸ275*75 | ɸ275*80 | ɸ360*93 | ɸ360*95 |

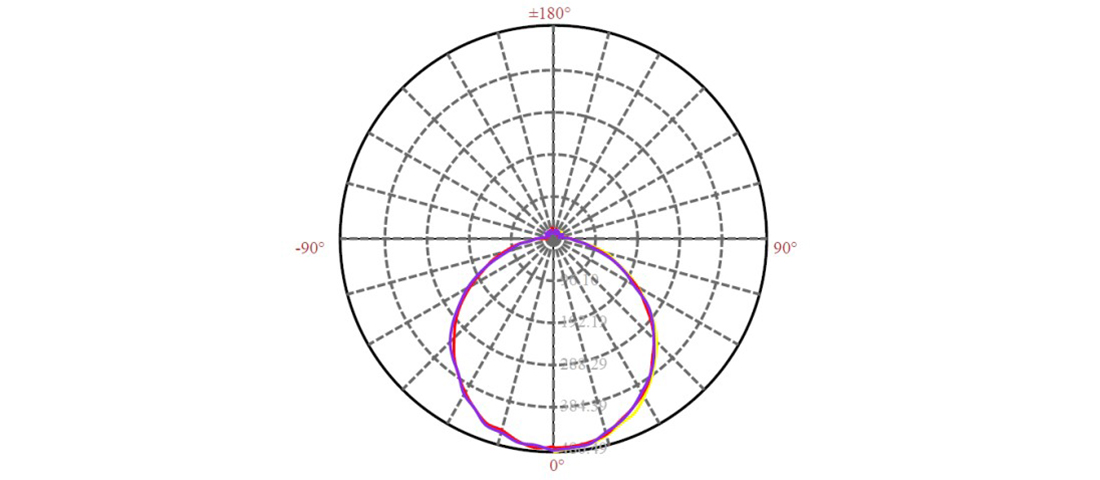

Light Distribution Curve:

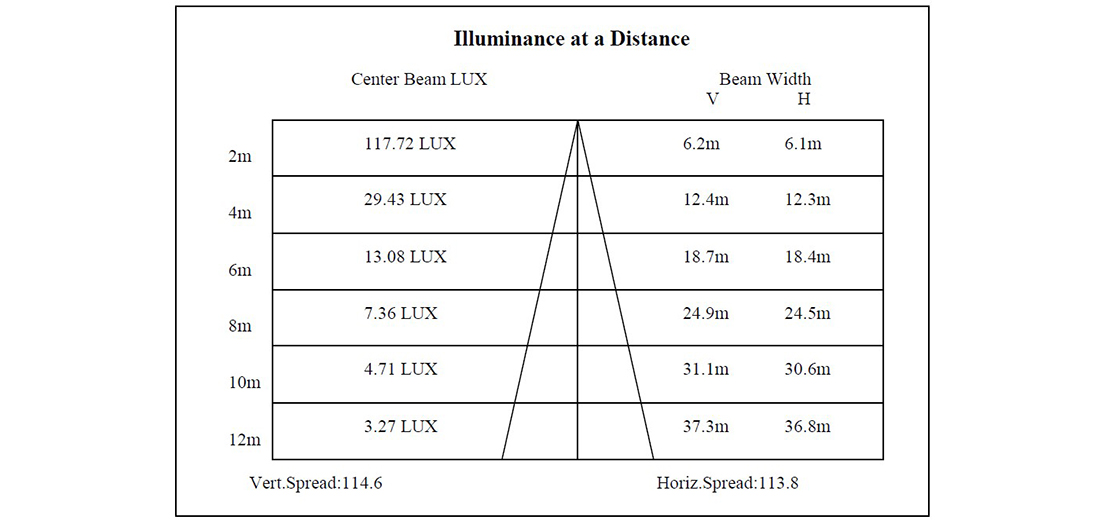

Lux Distance Curve:

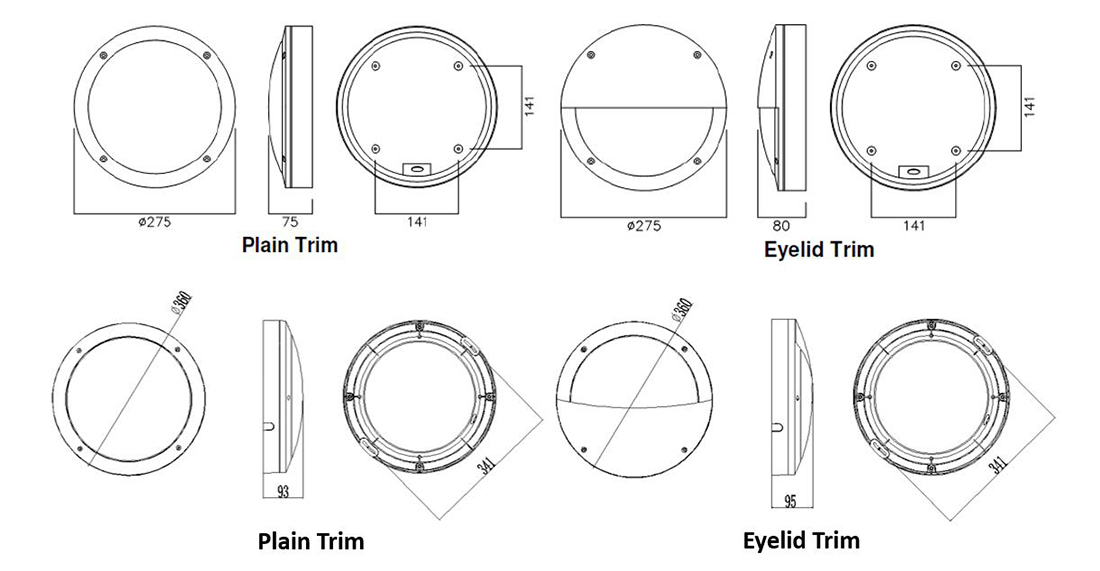

Size:

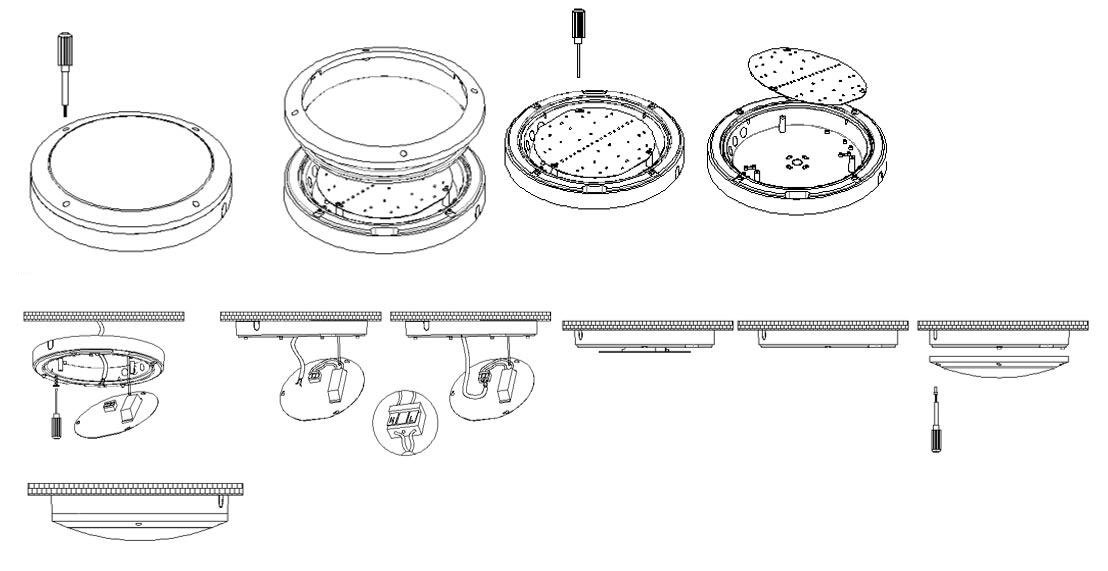

Installation:
