- Stainless steel base, standard 304, available to upgrade to 316
- Cover in toughened glass or polycarbonate
- Well painted / mirror finishing Steel gear tray
- Copper waterproof connector
- Available for quick terminal
- Saulty and acid applications like chicken Farm, ship, harbor, chemical factory or beach projects
- Industry, garages & workshops
- Food factory(with PC cover)
- Non-emergency versions rated to -25℃
- Resistant to impact and many chemical agents, but for suitability in specific environments pls take specialist advice
- Not suitable for use with Emergency System(EMG)
- All unavailable with Microwave Sensor(MW) because of metal body
Technical datas:
| Model | SK024-660 | SK040-1275 | SK060-1575 | SK024-660 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 24W | 40W | 60W | 24W |
| Light output L100 (lm): | 2640LM | 4400LM | 6000LM | 2100LM |
| CCT L100 (K): | 3000-6000K | |||
| Power factor(PF) | >0.85 | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | >110 | >110 | >110 | >85 |
| Ingress protection (IP): | IP65 | IP65 | IP65 | IP65 |
| SIZE(mm): | 600*170*100 | 1275*170*100 | 1575*170*100 | 660*170*100 |
| Model | SK024-1275 | SK040-1575 | ||
| Input Voltage | 220-240V AC | 220-240V AC | ||
| Power Consumption (W): | 40W | 60W | ||
| Light output L100 (lm): | 3400LM | 4800LM | ||
| CCT L100 (K): | 3000-6000K | |||
| Power factor(PF) | >0.9 | >0.9 | ||
| Protection Class | Class I | Class I | ||
| CRI L100: | >80 | >80 | ||
| Efficacy (lm/W): | >85 | >85 | ||
| Ingress protection (IP): | IP65 | IP65 | ||
| SIZE(mm): | 1275*170*100 | 1575*170*100 | ||

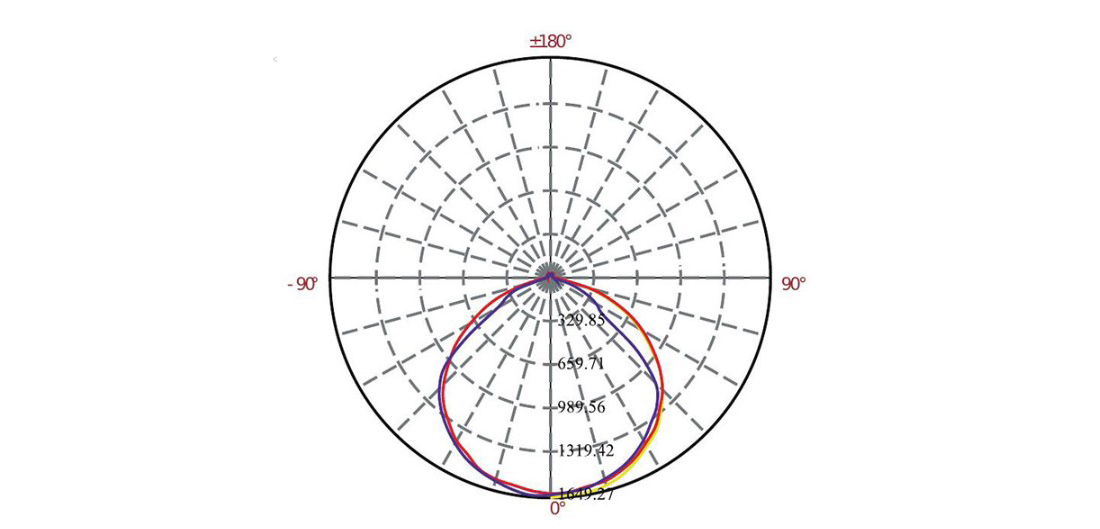

Light Distribution Curve:

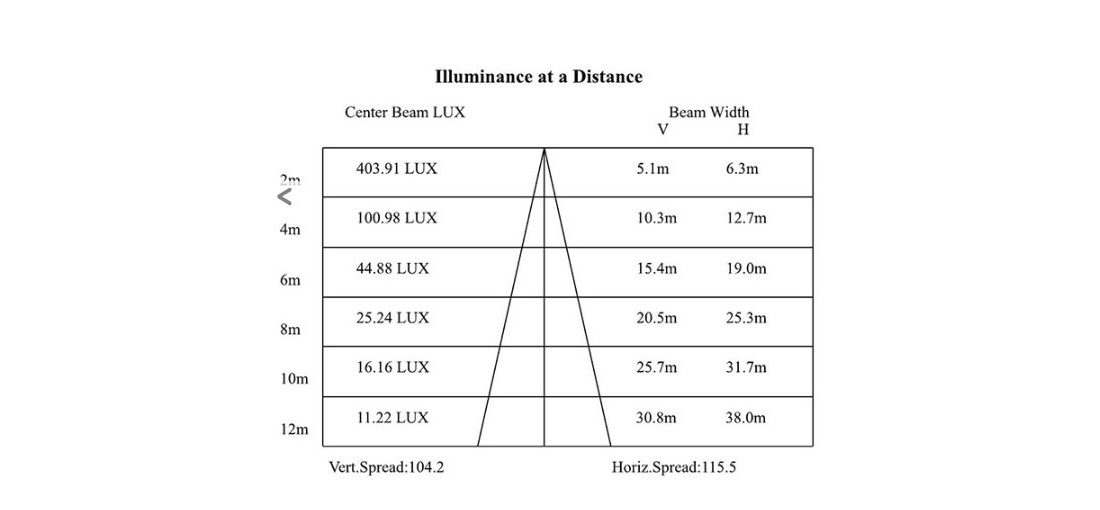

Lux Distance Curve:

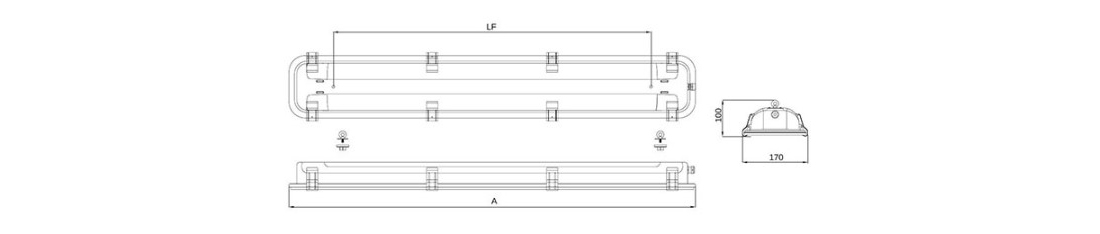

Size:

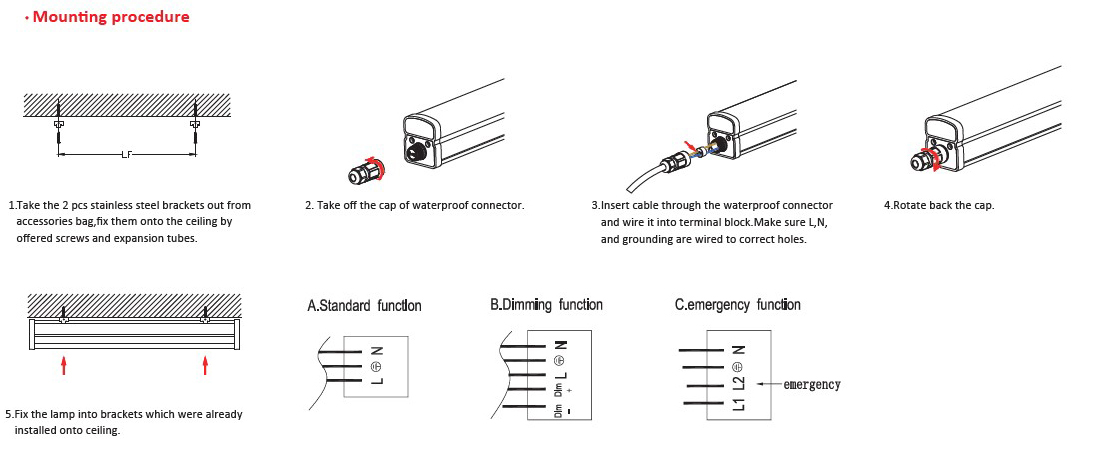

Installation:
