- IP65
- PC diffuser,PC base
- Aluminum or steel gear tray optional
- Clips can be locked by screws
- Easy installation
- 5 years warranty
Warehouses,car parks,supermarkets, food factory,clean room,marine etc
- Emitting color:CCT1
- Function:on-off microwave sensor /dimmable sensor/1-10V dimmable/DALI/emergency/through wiring
- Installation:Surface mounting/suspending
Technical data:
| Model | SNT-SALED110-2F-G2 | SNT-SALED210-2F-G2 | SNT-SALED120-4F-G2 | SNT-SALED220-4F-G2 |
| Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Power Consumption (W): | 10W | 20W | 20W | 40W |
| Light output L100 (lm): | 1100LM | 2200LM | 2200LM | 4400LM |
| CCT L100 (K): | 4000K-6500K | |||
| Power factor(PF) | ＞0.9 | ＞0.9 | ＞0.9 | ＞0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| IK rating: | IK08 | IK08 | IK08 | IK08 |
| IP rating: | IP65 | IP65 | IP65 | IP65 |
| Dimension (mm): | 650*70*70 | 650*117*70 | 1250*70*70 | 1250*117*70 |
| Model | SNT-SALED128-5F-G2 | SNT-SALED229-5F-G2 | SNT-SALED240-5F-G2 | SNT-SALED134-6F-G2 |
| Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Power Consumption (W): | 28W | 58W | 80W | 34W |
| Light output L100 (lm): | 3080LM | 6380LM | 8500LM | 3740LM |
| CCT L100 (K): | 4000K-6500K | |||
| Power factor(PF) | ＞0.9 | ＞0.9 | ＞0.9 | |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| IK rating: | IK08 | IK08 | IK08 | IK08 |
| IP rating: | IP65 | IP65 | IP65 | IP65 |
| Dimension (mm): | 1550*70*70 | 1550*117*70 | 1550*117*70 | 1850*70*70 |
| Model | SNT-SALED235-6F-G2 | |||
| Input Voltage | AC220-240V | |||
| Power Consumption (W): | 70W | |||
| Light output L100 (lm): | 7700LM | |||
| CCT L100 (K): | 4000K-6500K | |||
| Power factor(PF) | ＞0.9 | |||
| Protection Class | Class I | |||
| CRI L100: | >80 | |||
| IK rating: | IK08 | |||
| IP rating: | IP65 | |||
| Dimension (mm): | 1850*117*70 | |||

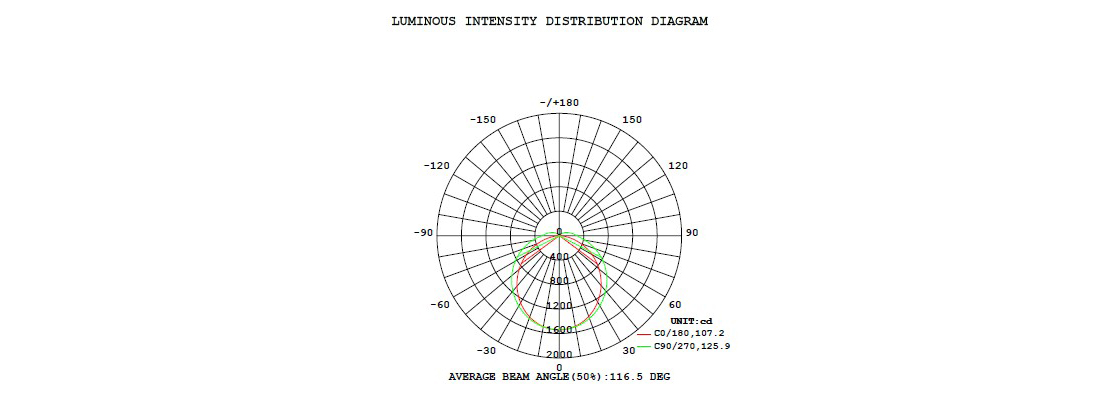

Light Distribution Curve:

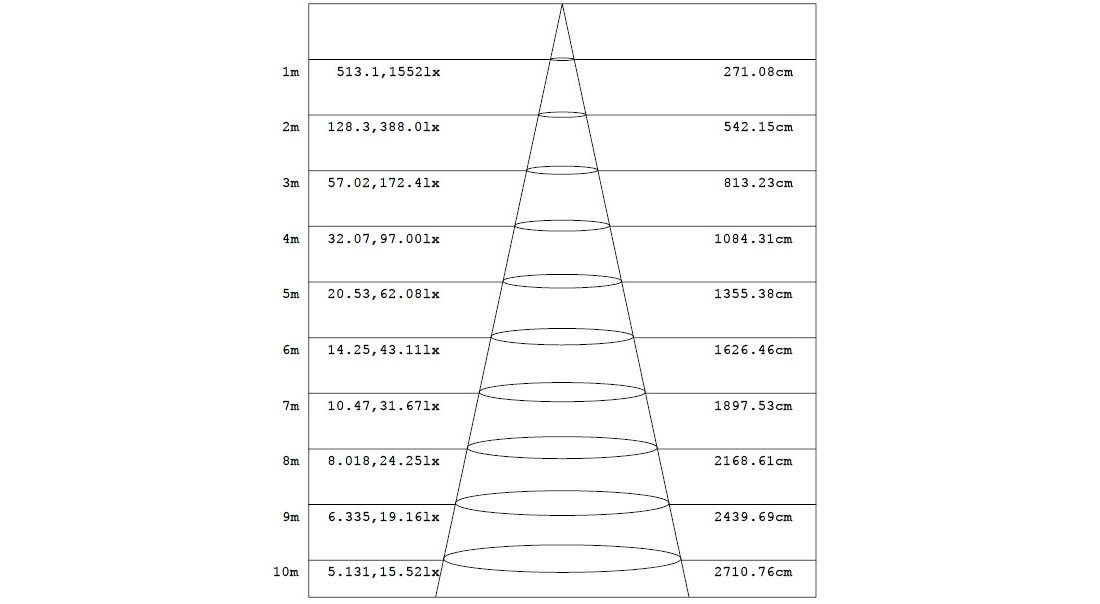

Lux Distance Curve:

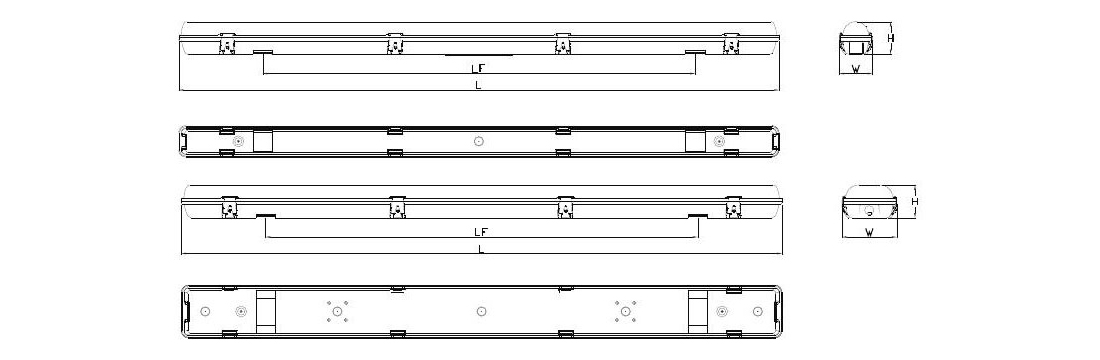

Size:

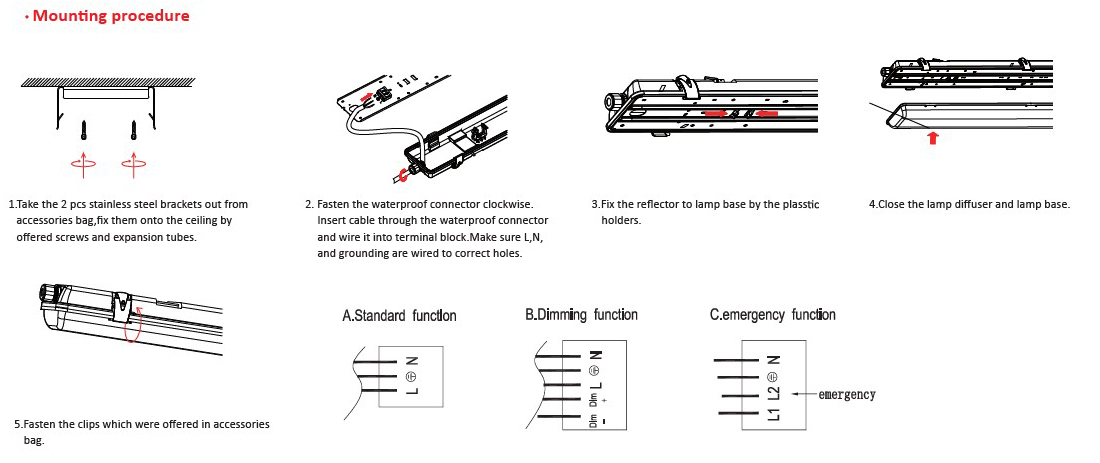

Installation:
